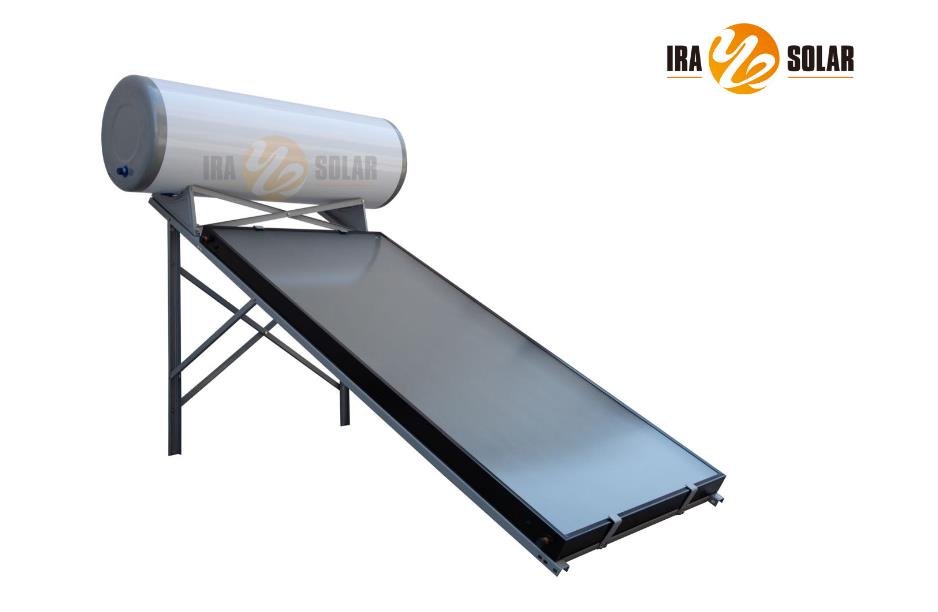

OEM Flat Panel Solar Water Heater 150L
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description: OEM Flat panel solar water heater
Color: Custom made
Size: 2mx1m
Material of out tank: 0.31mm thickness color steel/ fluorine carbon steel
Material of inner tank: Food grade 1.2 mm thickness SUS304 stainless steel
Tank insulating layer: 50mm thickness, 45kg/m3 high-density polyurethane foamed
Inlet and outlet hole: Female G 3/4
Max pressure: 0.6Mpa
Flat panel solar bcollector Dimension: 2000x1000x80mm
Absorber material: Selective balck chorme/Blue coating
Head pipe: Copper/Φ22x0.6
Branch pipe: Copper/Φ10x0.5
Quantity of Branch pipe: 7PCS
Welding: Laser welding
Cover: Low iron tempered textured glass
Frame: Anodised aluminium alloy
Insulation material: Rock wall
Bracket: 1.5mm thickness of galvanized steel material,25degree.
Structure of tank: 8 holes for PT valve,water inlet and outlet,electric heater,Mag Rod , Temp.Sensor.Heat exchange inlet and outlet
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Absorber area: 2m2
Temperature tolerance: from -5C to 250C
Tank capacity: 150L
Quality features, certificates
1.High level of efficiency due to Sunselect coating on the absorber.
2.Low energy loss thanks to excellent thermal insulation.
3.Suitable for on?roof and flat?roof assembly Installation: vertical, side by side.
4.Robust aluminium frame for maximum durability.
5.Highly reliable with long useful life due to the use of high quality, corrosion?resistant materials. Glass covering made from
6.low iron solar glass.
Color: Custom made
Size: 2mx1m
Material of out tank: 0.31mm thickness color steel/ fluorine carbon steel
Material of inner tank: Food grade 1.2 mm thickness SUS304 stainless steel
Tank insulating layer: 50mm thickness, 45kg/m3 high-density polyurethane foamed
Inlet and outlet hole: Female G 3/4
Max pressure: 0.6Mpa
Flat panel solar bcollector Dimension: 2000x1000x80mm
Absorber material: Selective balck chorme/Blue coating
Head pipe: Copper/Φ22x0.6
Branch pipe: Copper/Φ10x0.5
Quantity of Branch pipe: 7PCS
Welding: Laser welding
Cover: Low iron tempered textured glass
Frame: Anodised aluminium alloy
Insulation material: Rock wall
Bracket: 1.5mm thickness of galvanized steel material,25degree.
Structure of tank: 8 holes for PT valve,water inlet and outlet,electric heater,Mag Rod , Temp.Sensor.Heat exchange inlet and outlet
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Absorber area: 2m2
Temperature tolerance: from -5C to 250C
Tank capacity: 150L
Quality features, certificates
1.High level of efficiency due to Sunselect coating on the absorber.
2.Low energy loss thanks to excellent thermal insulation.
3.Suitable for on?roof and flat?roof assembly Installation: vertical, side by side.
4.Robust aluminium frame for maximum durability.
5.Highly reliable with long useful life due to the use of high quality, corrosion?resistant materials. Glass covering made from
6.low iron solar glass.
