$100.00
Add to Cart

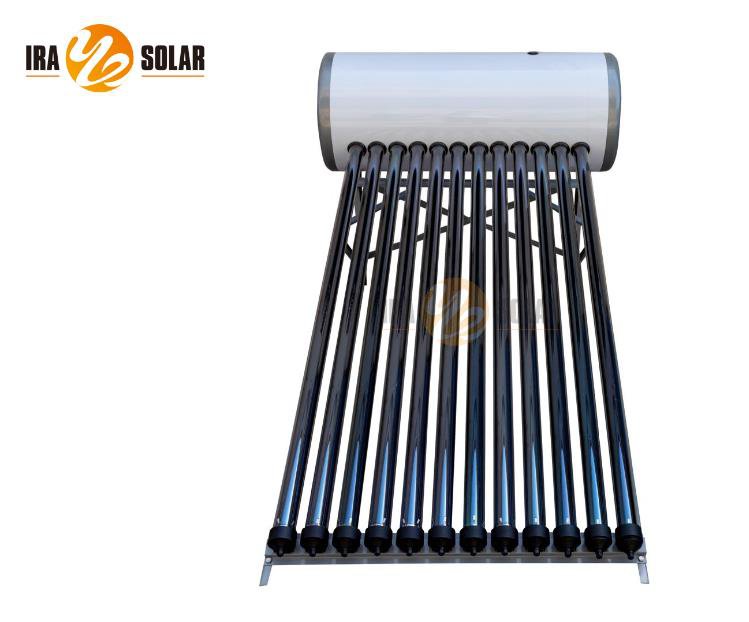

OEM Heat pipe pressurized solar water heater 150L
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Model: IRA-HP58/1.8-OEM12
Color: Custom made
Material of out tank: 0.31mm thickness color steel/ fluorine carbon steel
Material of inner tank: Food grade 1.0 mm thickness SUS304 stainless steel
Tank insulating layer: 50mm thickness, 45kg/m3 high-density polyurethane foamed
Inlet and outlet hole: Female G 3/4
Max pressure: 0.9Mpa
Solar collector tube: 3.3 Borosilicate glass with Al-SS/Cu coating 58x1,800mm with heat pipe
Thickness of glass tube: 1.6mm
Vacuum tube tightness: P≤0.005 Pa
Absorption: as=0.93-0.96(AM1.5)
Emission ratio: εh=0.04-0.06(80C±5C)
Idle sunning property parameters: Y=220~260m2.C/KW
Average heat loss coefficient: ULT=0.6~0.7W/(m2.C)
Bracket: 1.0mm thickness of galvanized steel material
Structure of tank: 4 holes for PT valve,water inlet and outlet,Mag Rod
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Absorber area: 1.124m2
Heat pipe size: Dia14mm x 70mm length condenser,170cm length in total
Heat pipe material: TU1 copper
Heat pipe power: >120W/pcs
Temperature tolerance: from -35C to 250C
Tube quantity: 12 tubes
Other Tube quantity: 8/10/12/15/18/20/24/30/36 tubes
Tank capacity: 150L
Other Tank capacity: 80/100/120/150/180/200/240/300/360L
Color: Custom made
Material of out tank: 0.31mm thickness color steel/ fluorine carbon steel
Material of inner tank: Food grade 1.0 mm thickness SUS304 stainless steel
Tank insulating layer: 50mm thickness, 45kg/m3 high-density polyurethane foamed
Inlet and outlet hole: Female G 3/4
Max pressure: 0.9Mpa
Solar collector tube: 3.3 Borosilicate glass with Al-SS/Cu coating 58x1,800mm with heat pipe
Thickness of glass tube: 1.6mm
Vacuum tube tightness: P≤0.005 Pa
Absorption: as=0.93-0.96(AM1.5)
Emission ratio: εh=0.04-0.06(80C±5C)
Idle sunning property parameters: Y=220~260m2.C/KW
Average heat loss coefficient: ULT=0.6~0.7W/(m2.C)
Bracket: 1.0mm thickness of galvanized steel material
Structure of tank: 4 holes for PT valve,water inlet and outlet,Mag Rod
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Absorber area: 1.124m2
Heat pipe size: Dia14mm x 70mm length condenser,170cm length in total
Heat pipe material: TU1 copper
Heat pipe power: >120W/pcs
Temperature tolerance: from -35C to 250C
Tube quantity: 12 tubes
Other Tube quantity: 8/10/12/15/18/20/24/30/36 tubes
Tank capacity: 150L
Other Tank capacity: 80/100/120/150/180/200/240/300/360L
CN, zhejiang
